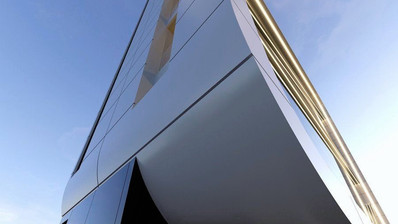

A stunning and instantly recognizable facade makes the Eight- storey Tower office building a truly remarkable structure. Purpose - designed to profoundly affect the productivity and creativity of everyone who works here, it will also leave a significant impression on visiting clients.
Total Covered area 206 m2
Specifications
MAIN STRUCTURE
1. The main structure is reinforced
concrete in accordance with the Cyprus
Seismic Code and EUROCODE 8 and
designed according to the Cyprus
Concrete Code of Practice CYS 159 and
EUROCODE 2.
2. The foundations and frame of the
building is made of reinforced
concrete grade (C40 / C50)
INSULATIONS
1. Fire All flat surfaces will be insulated
with 4mm high quality bitumen
reinforced polyester membrane.
2. Mapei Mapelastic or similar type water
insulation, reinforced with mesh, will be
used under ceramic surfaces
3. Thermal insulation system from Baumit
or similar
4. Based on building energy performance
certificate
WALLS
All the walls will be built with bricks
1. External walls - 250mm thick + plaster
2. Internal walls - 100mm thick + plaster
PLASTERING & PAINTWORK
All the external walls will be covered with
baumit system or similar.
1. All the interior walls are covered with
two coats of fine rendering and three
coats of paint. (Sigma coatings or
similar)
2. Fair face concrete ceilings are brought
to a smooth finish with two coats of
fine rendering and three coats of paint.
WOODWORK
1. The entrance door of the office will be
45mm thick, fire proof. with a smooth
finish of lacquer. Case and casing the
same. Security lock, is included,
2. Middle doors will be made of hardboard
with a smooth finish of lacquer
3. Cabinets with opening doors made
of slabs with smooth surface of
lacquer, internal melamine plate 18mm.
thickness. Each cabinet will have
drawers with soft closing caps. Handles
and hose tubes are included.
4. Kitchenette custom made
5. Staircase doors will be made of a 45
mm thick one-sided fire door made
of fibre-board coated with melamine
sheets, case and sheaths the same.
Includes a resetting sparkler, fire safety
glass and knob
FLOORING
1. Office space, raised floor with ceramic
tile 60x60 cm
2. Verandas: High quality ceramics:
€30.00/m2
3. Window Sills: High quality Marble
€25.00/m2
4. Kitchen worktops and wall: High quality
Granite €350.00/m
The customer can choose the type and colour
from a range of ceramics from selected
suppliers.
BATHROOMS & WC
Bathrooms & WC: high quality ceramics
€40.00/m2
ALUMINUM FRAMES & GLASS
All aluminium work will be executed
according to the construction details and the
work performed will be of excellent quality.
All sections and fittings to be used will
be in accordance with the manufacturer’s
drawings and specifications
Curtain Walls:
North Elevation: MU4200 structural step
system
South Elevation: GUTMAN Vario System.
Glazing: High Performance Doubled Glazing
thermally toughened comprising of:
External: Stop ray Smart 30/20 10mm
thickness.
Internal: Strat phone Clear lite 4.2.4 8mm
thickness. - Void: 20mm Argon
Railings on terraces will be glass based on
architectural designs, or metal
SANITARY WARE
• Imported high quality sanitary ware
with accessories cost of €1000 euro
The customer can choose the type and colour
from a range of ceramics from selected
suppliers.
ELECTRICAL INSTALLATIONS
Strictly following the Electricity
Authority of Cyprus regulations for all the
electrical installations
1. Complete electrical installation for all
common areas of the building
2. Electrical installation and structure
cabling in the office area included.
3. Lighting building automation system
(KNX System)
4. The purchase of lights
5. IP Videophone system
6. Fire alarm system
MECHANICAL INSTALLATIONS
PLUMBING
1. Heater with 200 lt. hot water tank, with
electrical immersion heater and cold
water tank of 500 lt.
2. Pressure pumps
AIR CONDITIONING / FRESH AIR
1. Daikin AC units included
2. VRV System
3. Fresh air system included
4. WC ventilation

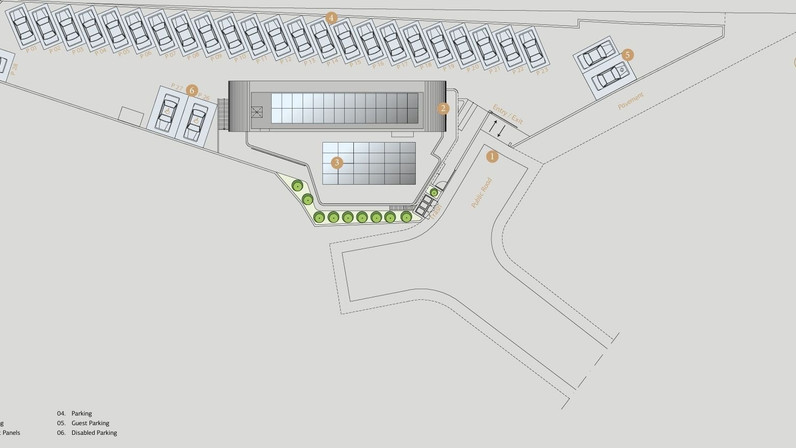

EXTERIOR GROUNDS, PARKING
AREA
The drive-in and parking areas should be
finish with bricks 10 x 20 cm
FENCING & GATES
1. High quality, double safe glass, for the
balustrades to all balconies.
2. Concrete wall to be used for fencing
the perimeter wall and as well extruded
aluminium frames for extra protection.
OUTSIDE DECORATION
Alucobond according to architecture
drawings €160.00/m2
AMENITIES / FACILITIES
1. 1 covered parking space per 60 m2 of
office space
2. 1 covered parking area for disabled
guests Lobby 1 WC for disabled guests
3. Each office 1 disabled WC type B
FALSE CEILING
Ground floor/mezzanine
Additional for perimeter details/for GF/mezzanine
Additional for access panel for GF/mezzanine
BUILDING ACCESS
Access control system included
Security System (Intruder/burglar alarm
